SDLG LG6360E crawler excavator with pilot operation and 1.7m3 bucket

الصين SDLG LG6360E crawler excavator with pilot operation and 1.7m3 bucket المزود
SDLG LG6360E crawler excavator with pilot operation and 1.7m3 bucket المزود SDLG LG6360E crawler excavator with pilot operation and 1.7m3 bucket المزود

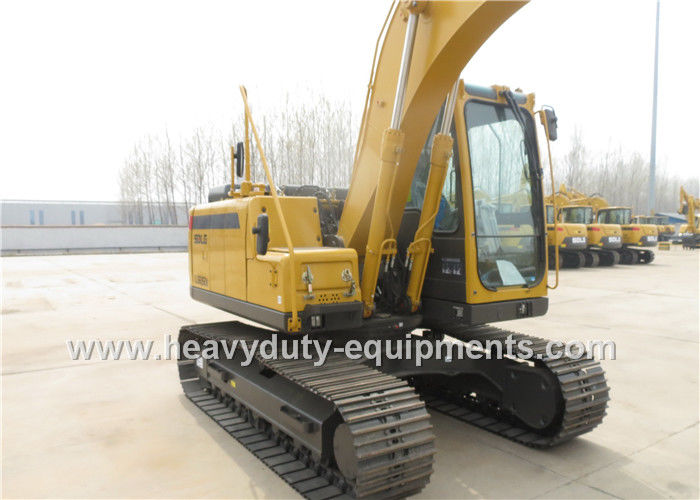

صورة كبيرة :  SDLG LG6360E crawler excavator with pilot operation and 1.7m3 bucket

تفاصيل المنتج:

Place of Origin: CHINA
اسم العلامة التجارية: SINOMTP
إصدار الشهادات: ISO, CCC, BV
Model Number: LG6360E

شروط الدفع والشحن:

Minimum Order Quantity: 1 UNIT
الأسعار: Negotiable
Packaging Details: nude
Delivery Time: 35 working days
Supply Ability: 100 units per month
اتصل
مفصلة وصف المنتج
Engine: SD130A Engine power: 198 kw , diesel
Overall operating weight: 37800kg Bucket capacity: 1.7M3
Max digging depth: 7450mm Max digging height: 7290mm
Length of boom: 6450mm Emission standard: Euro2
Traveling speed: 3.3/4.5km/h Swing speed: 9.7 r/min
تسليط الضوء:

hydraulic shovel excavator

,

hydraulic system excavator

SDLG LG6360E crawler excavator with pilot operation and 1.7m3 bucket



Engine SD130A Working device Standard rod
Emission standard Stage II Max. torque 1475 N.m
Overall operating weight 37800kg Bucket capacity 1.7 m³
Max. digging force 198KN Swing speed 9.7 r/min
Traveling speed 3.3/4.5km/h Dimension 11020*3340*3350mm
Max digging radius 11130mm Max digging depth 7450mm
Max digging height 7290mm Engine rated power 198 kw
Length of boom 6450mm Max climbing angle 35°
Hydraulic system Pilot operation negative flow Cabin

Standard cab

(with A/C)



Description:

The LG6360E is the product of SDLG’s absorbing advanced Volvo technologies to conduct a comprehensive upgrade and update, featuring strong power and efficient operation.



Advantage:

  1. Applied with the imported SDLG dedicated low-speed high-torque 13L engine, featuring strong power, which is provided with the SIEDIA fault detection interface, facilitating the inspection and maintenance of the engine, and equipped with the three-stage air filter, oil filter and fuel filter, ensuring higher reliability.
  2. Applied with the reinforced heavy-duty boom, and the mining-type arm and bucket, more reliable and better adapted to heavy-duty mining and other operating conditions,
  3. The high-torque slewing motor and reinforced slewing inner ring gear enable highslewing speed, and the wet brake ensures goods moothness and high reliability.
  4. Applied with the reinforced upper frame designed for harsh mining conditions and the X-type lower frame of the widened chassis, offering higher stability and easily qualified for heavy-duty operating conditions.



Application:

Excavator is a multipurpose machinery of earthwork construction, mainly for digging and loading.

SDLG LG6360E crawler excavator with pilot operation and 1.7m3 bucket
