تفاصيل المنتج:
شروط الدفع والشحن:
|
| Production: | Milling Machine | Major diameter of roller: | Ф520x280mm |
|---|---|---|---|
| Max.Feed Size: | <40 mm | Capacity: | 10-35 th |
| Main unit motor: | 160kw | Magnetic Vibrating Feeder: | GZ4F, 0.45kw |
| تسليط الضوء: | crushing stone machine,rock crushing machines |
||

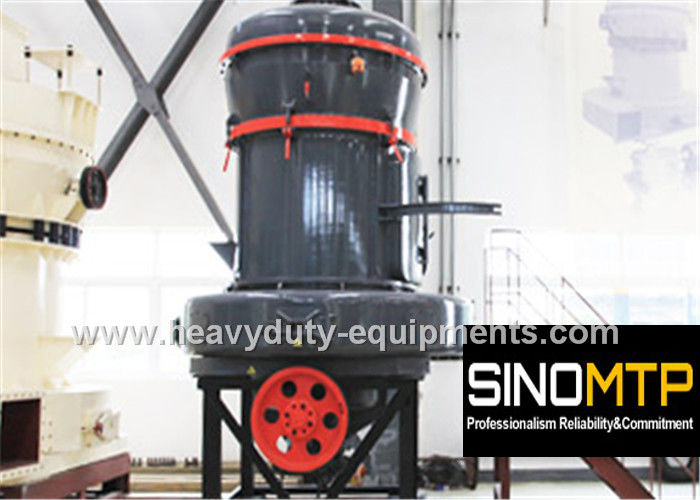

160kw MTW Milling Machine Ф520x280mm Roller With Powder Concentrator
Specification:
| Production | Milling machine |
| Major diameter of roller(mm) | Ф520x280 |
| Inner diameter of roller (mm) | Ф1750x280 |
| Max.Feed Size(mm) | <40 |
| Final size(mm) |
1.2-0.045, fineness can reach to 0.038 |
| Capacity(th) | 10-35 |
| Main unit motor | 160kw |
| Centrifugal induced draft fan motor | 200kw |
| Classifier speed regulating motor(variable frequency motor) | 37kw |
| Magnetic Vibrating Feeder | GZ4F, 0.45kw |
Description:
This MTW series milling machine is designed by our experts, according to collected advice from customers’ long-term experiences. It takes the most advanced patent technology from European and the supply the customers with outstanding performance.
Advantage:
1. Cone gear whole transmission-compact conformation, convenient installation, reducing dissipation of energy.
2. Optimization design for grinding roller grinding ring of main-spring pressurization, high-wearing feature.
3. High-performance powder concentrator design-accurate and quick selection of powder.
4. Unique wear proof perching knife design- fission type, convenient for maintenance, wear resistant material, long life.
Application:
The MTW series milling machine is ideal machine for grinding baritone, limestone, mica, talcum, quartz, calcite, granite, porcelain clay, basalt, gypsum, gold, iron ore, bauxite, copper, cement, coal etc. So it has wide application in powder making industry of construction, mining and paper-making and so on.
