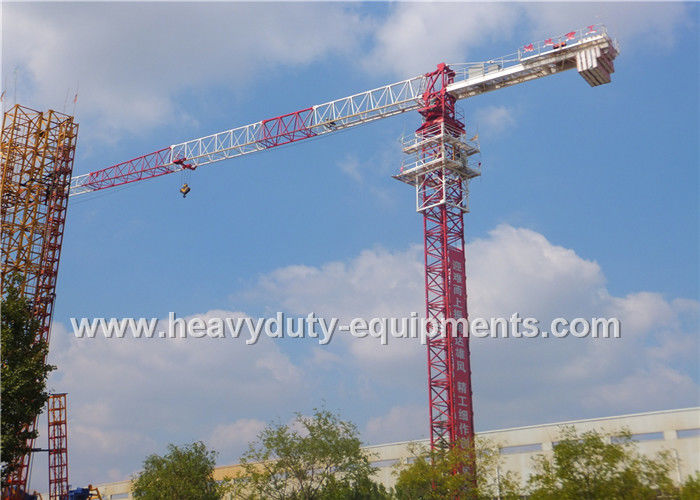

Residential Buildings Horizontal Electric Tower Crane Jib Frame 3.1T Tip Load

الصين Residential Buildings Horizontal Electric Tower Crane Jib Frame 3.1T Tip Load المزود

صورة كبيرة :  Residential Buildings Horizontal Electric Tower Crane Jib Frame 3.1T Tip Load

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: SINOMTP
إصدار الشهادات: ISO/CE/BV/CCC
Model Number: MTP 300

شروط الدفع والشحن:

Minimum Order Quantity: 1 unit
الأسعار: Negotiation
Packaging Details: NUDE
Delivery Time: 35 days before payment
Supply Ability: 100 units per month
اتصل
مفصلة وصف المنتج
Free Height (m): 50 Max Load (T): 12
Tip Load (T): 3.1 Slewing Speed (r/min): 0-0.7
Radius-changing Speed (m/min): 0-80 Jacking-up Speed (m/min): 0.46
تسليط الضوء:

construction heavy equipment

,

industrial construction equipment

Residential Buildings Horizontal Electric Tower Crane Jib Frame 3.1T Tip Load







Model MTP 300 Max Working Radius (m) 70
Free Height (m) 50 Max Load (T) 12
Tip Load (T) 3.1 Max Height (m) 221
Wall Ties for Max Height (sets) 8 Main Material Specs (mm)

Square Steel Tube from Angle Steel

1402*16

Mast Section Dimension (m) 2.083*2.083*3 Hoisting Speed (m/min) 0-102
Min Steady Falling Speed (m/min) 2 Slewing Speed (r/min) 0-0.7
Radius-changing Speed (m/min) 0-80 Jacking-up Speed (m/min) 0.46



Description:

The series of tower cranes, max payload from 3T to 25T, is among our leading products. With their working radiuses varying from 30m to 80m, our tower cranes are famous for their large operating ranges, varied working methods and wide uses.



Advantages:

  1. This series of tower cranes has a horizontal jib frame, a jib-trolley radius-changing mechanism and a hydraulic self-raising mechanism.
  2. It is original in design, reliable in operation and satisfactory in shape.
  3. Equipped with all necessary safety devices, these cranes show a good speed-control capacity, satisfactory operating stability and high work efficiency.
  4. Our tower cranes have been awarded many honors like “SHANDONG FAMOUS BRAND”. “QUALITY FIRST” is not only a slogan; it is deeply rooted in the hearts of our people. We also provide excellent after-sale service which will get rid of all your worries in the purchase of our products.



Application:

They can be widely used for the construction of high-rise hotels, residential buildings, high-rise industrial buildings, large-span factory buildings and tower-like buildings like tall chimneys.
