Hydraulic Vibratory Road Roller XG6121 equipped with Cummins 6BT5,9

الصين Hydraulic Vibratory Road Roller XG6121 equipped with Cummins 6BT5,9 المزود

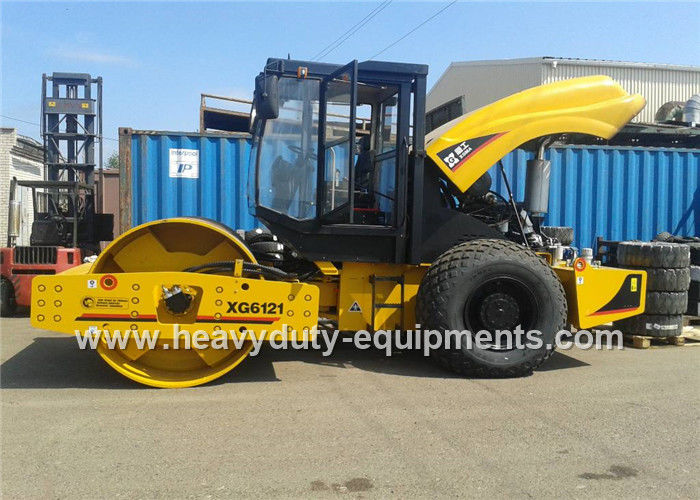

صورة كبيرة :  Hydraulic Vibratory Road Roller XG6121 equipped with Cummins 6BT5,9

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: SINOMTP
إصدار الشهادات: ISO/CCC
Model Number: XG6121

شروط الدفع والشحن:

Minimum Order Quantity: 1
الأسعار: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
مفصلة وصف المنتج
Model: XG6121 Engine model: Cummins 4BTA3.9
Operating Weight: 12100 Static Linear Load of Drum: 333
Vibration Frequency: 30 Theoretical Amplitude: 1.7/0.85

Hydraulic Vibratory Road Roller XG6121 equipped with Cummins 6BT5,9



Specification:



Description Unit XG6121
Operating Weight kg 12100
Static Linear Load of Drum N/cm 333
Vibration Frequency Hz 30
Theoretical Amplitude mm 1.7/0.85
Centrifugal Force kN 247/127
Drum Weight kg 7100
Drum Linear Static Load N/cm 333
Min. Turning Radius mm 6300
Max. Gradeability % 50
Drum (D×W) mm φ1550×2130
Min. Ground Clearance mm 295
Overall Dimensions (L×W×H) mm
Travel speed Gear I km/h 0-4.3
Gear II km/h 0-6.4
Gear III km/h 0-9.2
Engine Model   Cummins 6BT5.9
Rated Power kW 112
Rated Speed r/min 2400



Description:



Road rollers of this series are hydrostatic transmission double drive vibratory road rollers. They are ideally suited for compaction operations of road, railway, airport, dam and various earthwork foundations.

Features of XGMA Hydraulic Vibratory Road Roller



Advantage:


1. Adopt Dongfeng Cummins turbocharged diesel engine, with the features of being reliable, environment friendly and energy-saving.
2. Reasonable power selection, remarkable overall performance, and great operation efficiency.
3. Hydraulic driving pump and motor are SAUER or REXROTH products, PERMCO or HERCULER vibrating pump and motor are used, and vibratory bearing is imported from Sweden SKF or Germany FAG.
4. Its two amplitudes accommodate to various working conditions, with the front/rear drive and the continuous travel speed control.



Hydraulic Vibratory Road Roller XG6121 equipped with Cummins 6BT5,9
