تفاصيل المنتج:
شروط الدفع والشحن:
|
| Model: | XG3180C | Engine: | Cummins 6BTA5.9-C180 |
|---|---|---|---|
| Total Weight (Kg): | 15500 | Rated Power: | 132/180 kw/hp |
| Type of Service Brake: | Hydraulic disc brake | Max. Blade Angle: | 90 ° |
| تسليط الضوء: | road construction machinery,road machinery equipment |
||

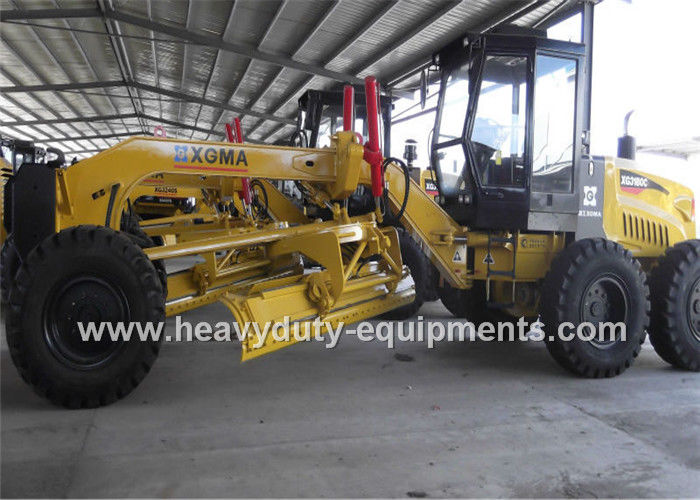

XGMA XG3180C grader with 90°max. blade angle good use in road construction
Specification:
| Model | XG3180C | Transmission | --- |
| Engine |
Dongfeng Cummins 6BTA5.9-C180 |
Drive Type | Rear-axle drive |
| Rated Power | 132/180 kw/hp | Type of Service Brake | --- |
|
Blade Height× String Height |
3965×610 mm | Steering Angle | ±45 ° |
| Max. Blade Angle | 90 ° | Type of Service Brake | Hydraulic disc brake |
| Cutting Depth (mm) | 500 | Total Weight (Kg) | 15500 |
| Drive Type | Motor + worm case | Full Overall Dimensions (mm) (L×W×H) | 10530×2750×3400 |
Description:
As China motor grader manufacturer and supplier, we believe that we can offer you high quality with low price Chinese motor grader.
Advantage:
1.The motor grader has been equipped Cummins diesel engine which is turbocharged, inter-cooled, the engine has lower noisy and compact, it make the motor grader is powerful and working quit,
2.The motor grader are adopted hydrodynamic torque converter, the gearbox of transmission system is used the gearbox maker of China.
3.The hydraulic system of motor grader has double-pump, dual-circuit for stability and reliability.
4.The hydraulic system of motor grader has double-pump, dual-circuit for stability and reliability.
Application:
Generally motor grader is used to even road base when the road is constructed, sometimes motor graders are used in grassland and snow removal.
