Sinomtp FY25 Gasoline / LPG forklift with 3000 cc Displacement of GM engine

الصين Sinomtp FY25 Gasoline / LPG forklift with 3000 cc Displacement of GM engine المزود

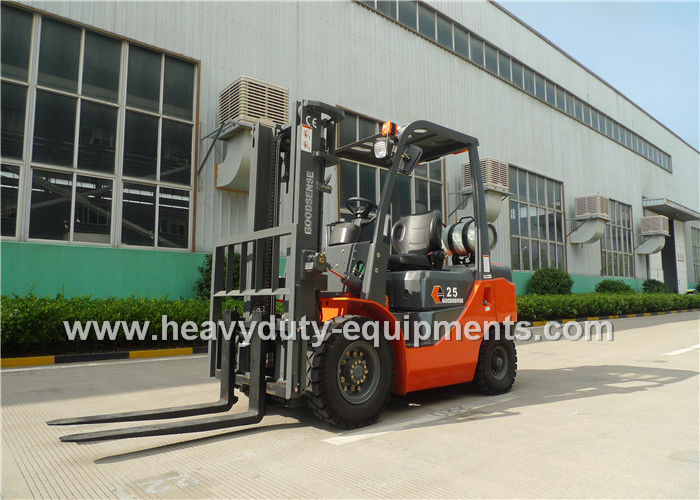

صورة كبيرة :  Sinomtp FY25 Gasoline / LPG forklift with 3000 cc Displacement of GM engine

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: SINOMTP
إصدار الشهادات: ISO/CCC/BV/CE
Model Number: SINOMTP-FY25

شروط الدفع والشحن:

Minimum Order Quantity: 1
الأسعار: Negotiation
Packaging Details: Nude, but with wax sprayed.
Delivery Time: 25 working days after received payment
Supply Ability: 500 units per month
مفصلة وصف المنتج
Model: SINOMTP-FY25 Power source: Gasoline/LPG
Rated load capacity: 2500kg Fork size (L×W×T): 1070×120×40 mm
Front Tire: 7.00-12-12PR Engine Brand: GM

Sinomtp FY25 Gasoline / LPG forklift with 3000 cc Displacement of GM engine



Specification:



Type of model FY25
Power source Gasoline/LPG
Rated load capacity 2500 kg
Load centre 500 mm
Lift height 3000 mm
Fork size (L×W×T) 1070×120×40 mm
Fork carriage tilt(F/R) 6°/12°
Overall Length(Length to fork face) 2600 mm
Overall Width 1150 mm
Mast Lowered Height 1995 mm
Mast Extended Height 4030 mm
Overhead Guard Height 2070 mm
Gradeability(Laden) 20%
Front Tire 7.00-12-12PR
Rear Tire 6.00-9-10PR




Description:



Engine Brand GM
Model GM3.0
Rated output 40/2500 kw/r.p.m
Rated torque 200/1600 Nm/r.p.m
No. of cylinder 4
Bore x Stroke 101.6X91.44 mm
Displacement 3000 cc



Advantage:



Our production range for internal-combustion counterbalance forklift trucks is from 1T-33T, Economical engines for option both domestic and imported, simple and neat rows of piping design properly layout the hard and soft pipes which greatly reduced the pipeline pressure. High strength integral hood with thermal and sound insulation materials tile-cylinder built-in designs and large operation space greatly improves the operator’s maximum comfort.

Sinomtp FY25 Gasoline / LPG forklift with 3000 cc Displacement of GM engineSinomtp FY25 Gasoline / LPG forklift with 3000 cc Displacement of GM engine

Sinomtp FY25 Gasoline / LPG forklift with 3000 cc Displacement of GM engine

Sinomtp FY25 Gasoline / LPG forklift with 3000 cc Displacement of GM engine
