Sinomtp FD40 diesel forklift with Rated load capacity 4000kg and LUOTUO engine

الصين Sinomtp FD40 diesel forklift with Rated load capacity 4000kg and LUOTUO engine المزود

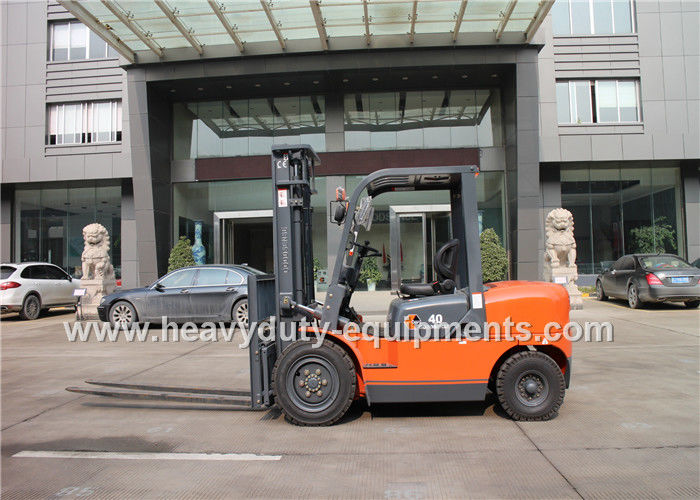

صورة كبيرة :  Sinomtp FD40 diesel forklift with Rated load capacity 4000kg and LUOTUO engine

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: SINOMTP
إصدار الشهادات: ISO/CCC/BV/CE
Model Number: SINOMTP-FD40

شروط الدفع والشحن:

Minimum Order Quantity: 1
الأسعار: Negotiation
Packaging Details: Nude, but with wax sprayed.
Delivery Time: 25 working days after received payment
Supply Ability: 500 units per month
مفصلة وصف المنتج
Model: SINOMTP-FD40 Power source: Diesel
Rated load capacity: 4000kg Fork size (L×W×T): 1070×150×50mm
Engine Brand tilt(F/R): LUOTUO Displacement: 4578cc

Sinomtp FD40 diesel forklift with Rated load capacity 4000kg and LUOTUO engine



Specification:



Type of model FD40
Power source Diesel
Rated load capacity 4000kg
Load centre 500mm
Lift height 3000mm
Fork size (L×W×T) 1070×150×50mm
Fork carriage tilt(F/R) 6°/12°
Overall Length(Length to face of fork) 3220mm
Overall Width 1480mm
Mast Lowered Height 2330mm
Mast Extended Height 4250mm
Overhead Guard Height 2320mm
Gradeability(Laden) 20%
Front Tire 300-15-18PR
Rear Tire 7.00-12-12PR




Description:



Brand LUOTUO
Model LR4B3-G89X6-U2
Rated output 57/2200kw/r.p.m
Rated torque 284-297/1400-1600Nm/r.p.m
No. of cylinder 4
Bore x Stroke 108X125mm
Displacement 4578cc



Advantage:



1. The instruments offer an easy accesses to the working condition of the truck, thus makes handling process more efficient and safe.

2. Supper low and non-slip make operating convenient and safe.

3. Designed according to ergonomic principles, makes operation much comfortable and also relieves the fatigue.

Wide-view mast gives the operator an enhanced forward visibility, which adds to the efficiency and safety of operator.

Sinomtp FD40 diesel forklift with Rated load capacity 4000kg and LUOTUO engine

Sinomtp FD40 diesel forklift with Rated load capacity 4000kg and LUOTUO engine
