Sinomtp FD25 forklift with Rated load capacity 2500kg and MITSUBISHI engine

الصين Sinomtp FD25 forklift with Rated load capacity 2500kg and MITSUBISHI engine المزود

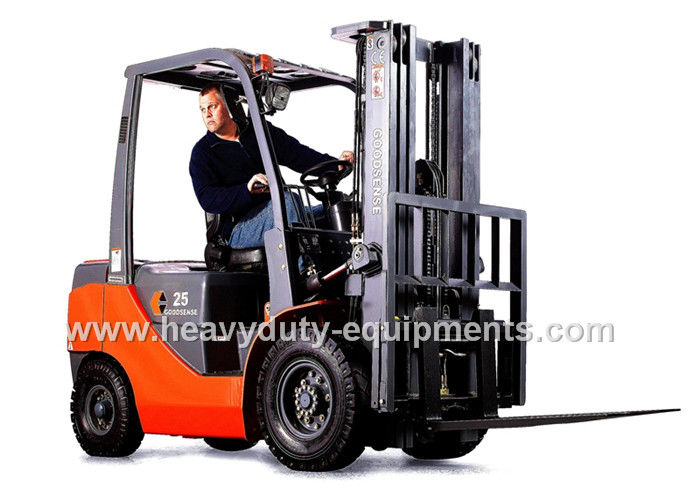

صورة كبيرة :  Sinomtp FD25 forklift with Rated load capacity 2500kg and MITSUBISHI engine

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: SINOMTP
إصدار الشهادات: ISO/CCC/BV/CE
Model Number: SINOMTP-FD25

شروط الدفع والشحن:

Minimum Order Quantity: 1
الأسعار: Negotiation
Packaging Details: Nude, but with wax sprayed.
Delivery Time: 25 working days after received payment
Supply Ability: 500 units per month
مفصلة وصف المنتج
Model: SINOMTP-FD25 Power source: Diesel
Rated load capacity: 2500kg Fork size (L×W×T): 1070×120×40mm
Engine Brand tilt(F/R): MITSUBISHI Displacement: 3331cc

Sinomtp FD25 forklift with Rated load capacity 2500kg and MITSUBISHI engine



Specification:



Type of Model FD25
Power source Diesel
Rated load capacity 2500kg
Load centre 500mm
Lift height 3000mm
Fork size (L×W×T) 1070×120×40mm
Fork carriage tilt(F/R) 6°/12°
Overall Length(Length to fork face) 2590mm
Overall Width 1150mm
Mast Lowered Height 1995mm
Mast Extended Height 4030mm
Overhead Guard Height 2070mm
Gradeability(Laden) 20%
Front Tire 7.00-12-12PR
Rear Tire 6.00-9-10PR




Description:



Brand MITSUBISHI
Model S4S-DPB
Rated output 38/2300kw/r.p.m
Rated torque 176/1800Nm/r.p.m
No. of cylinder 4
Bore x Stroke 94X120mm
Displacement 3331cc



Advantage:



1. Designed according to ergonomic principles, makes operation much comfortable and also relieves the fatigue.

2. Wide-view mast gives the operator an enhanced forward visibility, which adds to the efficiency and safety of operator.

3. The instruments offer an easy accesses to the working condition of the truck, thus makes handling process more efficient and safe.

4. The powerful engine ensures SINOMTP truck’s high handling performance and offers an intrinsical safety and efficient operation.

Sinomtp FD25 forklift with Rated load capacity 2500kg and MITSUBISHI engine

Sinomtp FD25 forklift with Rated load capacity 2500kg and MITSUBISHI engine
