Hydraulic Pilot Control Front Loader Equipment T939L Air Brake With Quick Hitch Attachments

الصين Hydraulic Pilot Control Front Loader Equipment T939L Air Brake With Quick Hitch Attachments المزود

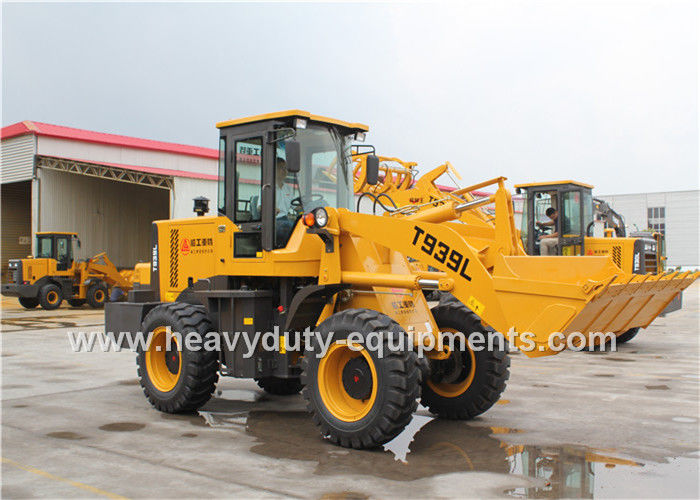

صورة كبيرة :  Hydraulic Pilot Control Front Loader Equipment T939L Air Brake With Quick Hitch Attachments

تفاصيل المنتج:

Place of Origin: CHINA
اسم العلامة التجارية: SINOMTP
إصدار الشهادات: CE, ISO , CCC
Model Number: T939L

شروط الدفع والشحن:

Minimum Order Quantity: 1 UNIT
الأسعار: Negotiable
Packaging Details: Container or customized
Delivery Time: 35 working days
Payment Terms: L/C, T/T
Supply Ability: 100 units per month
مفصلة وصف المنتج
Engine: Yuchai 58kw / Cummins 75kw Bucket Capacity: 1.3m3
Loading capacity: 2tons Dumping Height: 3500 - 4500mm
Operating Weight: 5900kgs Color: Yellow
Transmission: 280 Brake system: air brake
Min steering radius: 5900mm Control: Hydraulic pilot control

Hydraulic Pilot Control Front Loader Equipment T939L Air Brake With Quick Hitch Attachments







Specification:



Item T939L Axles Strengthen Axle
Code Wheel Loader Engine Yuchai / Cummins; Diesel; 58 / 75kw
Transmission 280 torque converter Bucket Capacity ( m3) 1.3m3
Rated Load 2tons Max Dumping Height (mm) 3500
Working Arm Standard Max Dumping Distance(mm) 1100
Cycle Time (s) ≤9 Min Steering Radius (mm) 5900
Brake System Air brake Max Tractive Force (KN) 50
Cab Luxury Dimension (L*W*H) (mm) 6500*2220*3010
Cooling/Heating System Optional Operating Weight (kg) 5900
Pilot control hydraulic  Attachment Optional



Description:

Mainly for loading and unloading loose materials. The entire machine is compact flexible in operation, of high working efficiency, more suitable for operation in narrow and small field and is widely used in places such as farms and municipal construction.



Advantages:

  • Yuchai / Cummins diesel engine, the engine have many advantages such as easy to start, low fuel consumption, strong power, low noisy, electric magnetic flameout .
  • Transmission and torque convert assembly system.
  • Adopting strengthened construction machinery driving axles, easy to maintain, with long working life.
  • Adopting high quality construction machinery tyres, meet different working conditions, it’s the first company equip wide Y type wave tyres on the small wheel loaders.



Application:

Small loader is a widely used construction machine in earthwork of roads, railways, hydropower, construction, ports, mines and other construction projects



Hydraulic Pilot Control Front Loader Equipment T939L Air Brake With Quick Hitch AttachmentsHydraulic Pilot Control Front Loader Equipment T939L Air Brake With Quick Hitch Attachments
